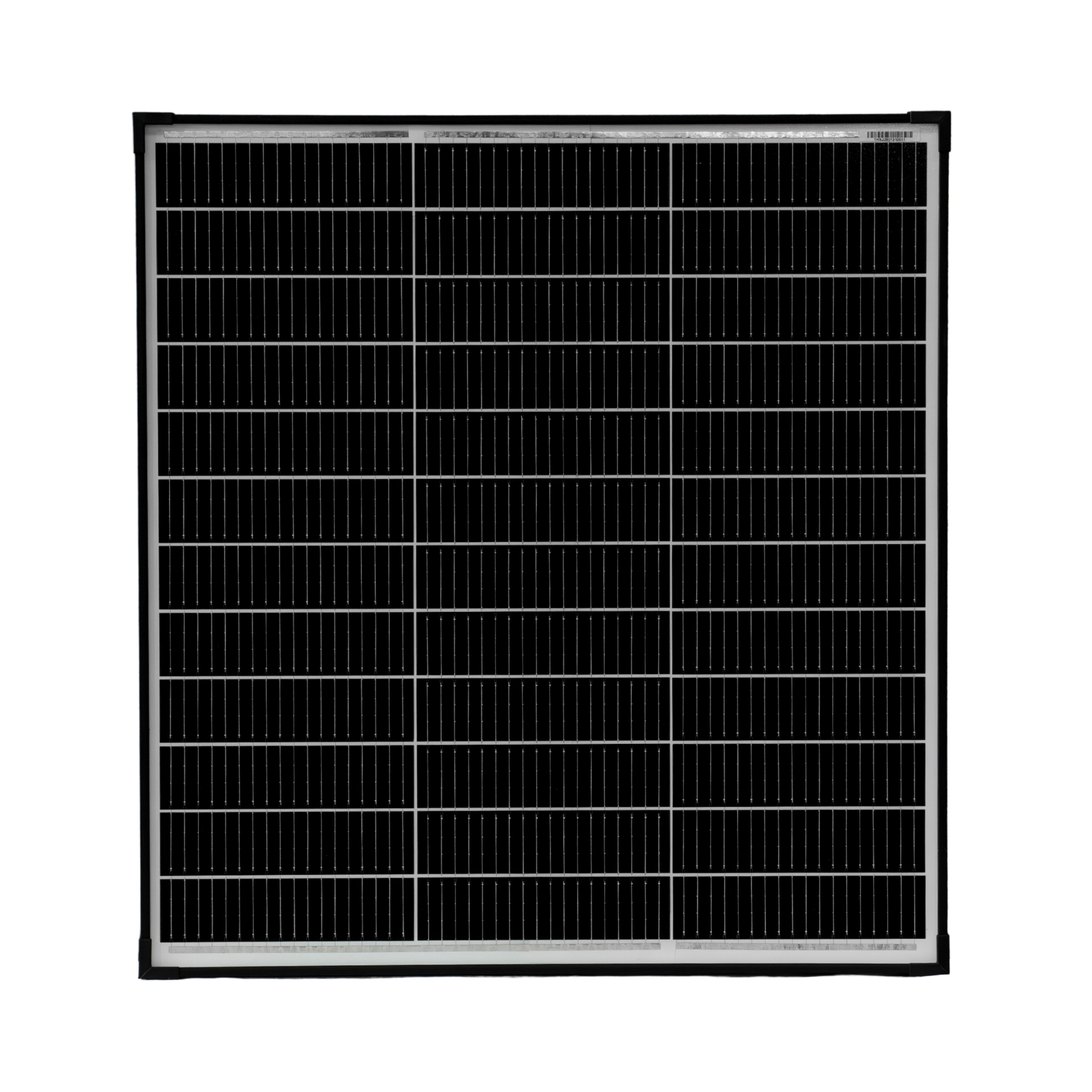

The Element3 100W Fixed Class Solar Panel is a popular starting point for weekend travellers and those looking to dip their toes into solar without committing to a full-size panel. Built with Grade A TopCon N-Type cells and engineered to the same 22V Vmp as the entire E3 glass panel range, the 100W slots seamlessly into any mixed E3 system — add more panels down the track without rewiring or compatibility headaches.
What Sets Element3 Panels Apart
Most solar panels on the market are designed and sold in isolation — buy a 100W today and a 200W later, and you’ll likely end up with two panels with different Vmp ratings running in the same circuit. The result? Your higher-voltage panel pulls down the output of the lower one, and your whole array underperforms.
The Element3 Glass Panel Series was designed to solve this from the ground up. Every panel in the range — from the 80W through to the 250W — shares an identical 22V Vmp. That means you can mix and match any combination of E3 glass panels in a single series or parallel circuit and maintain 100% efficiency across every panel, every time. Start small, expand later, and never rewire.
Key Features
- TopCon Grade A N-Type cells — the most advanced cell technology available for fixed solar panels
- 25.8%+ module efficiency — more power output from less roof space
- Consistent 22V Vmp across all six models — mix and match any E3 glass panels in one circuit with zero efficiency loss

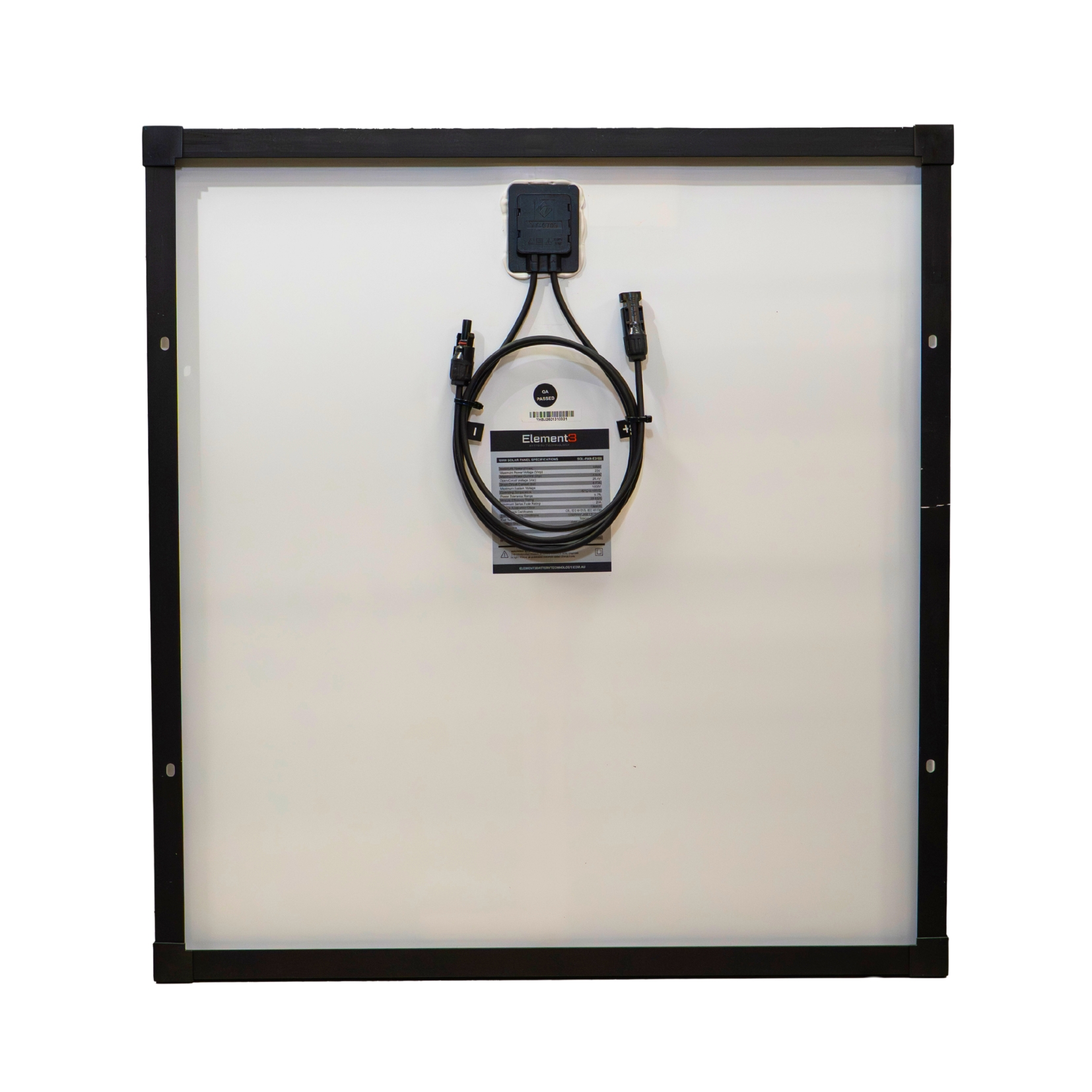

- IP68-rated junction box with bypass diodes — fully sealed against dust and water ingress
- Removable black plastic corner caps — clean finish with flexible mounting options
- Operating range -40°C to +85°C — built for Australian conditions from alpine cold to outback heat
- ±3% power tolerance — the rated wattage is what you actually get
- 1000V maximum system voltage — compatible with a wide range of MPPT controllers and inverters
- CE certified, Class A module rating
- IEC standard test conditions: 1000W/m², AM1.5, 25°C
- 5-year product warranty
