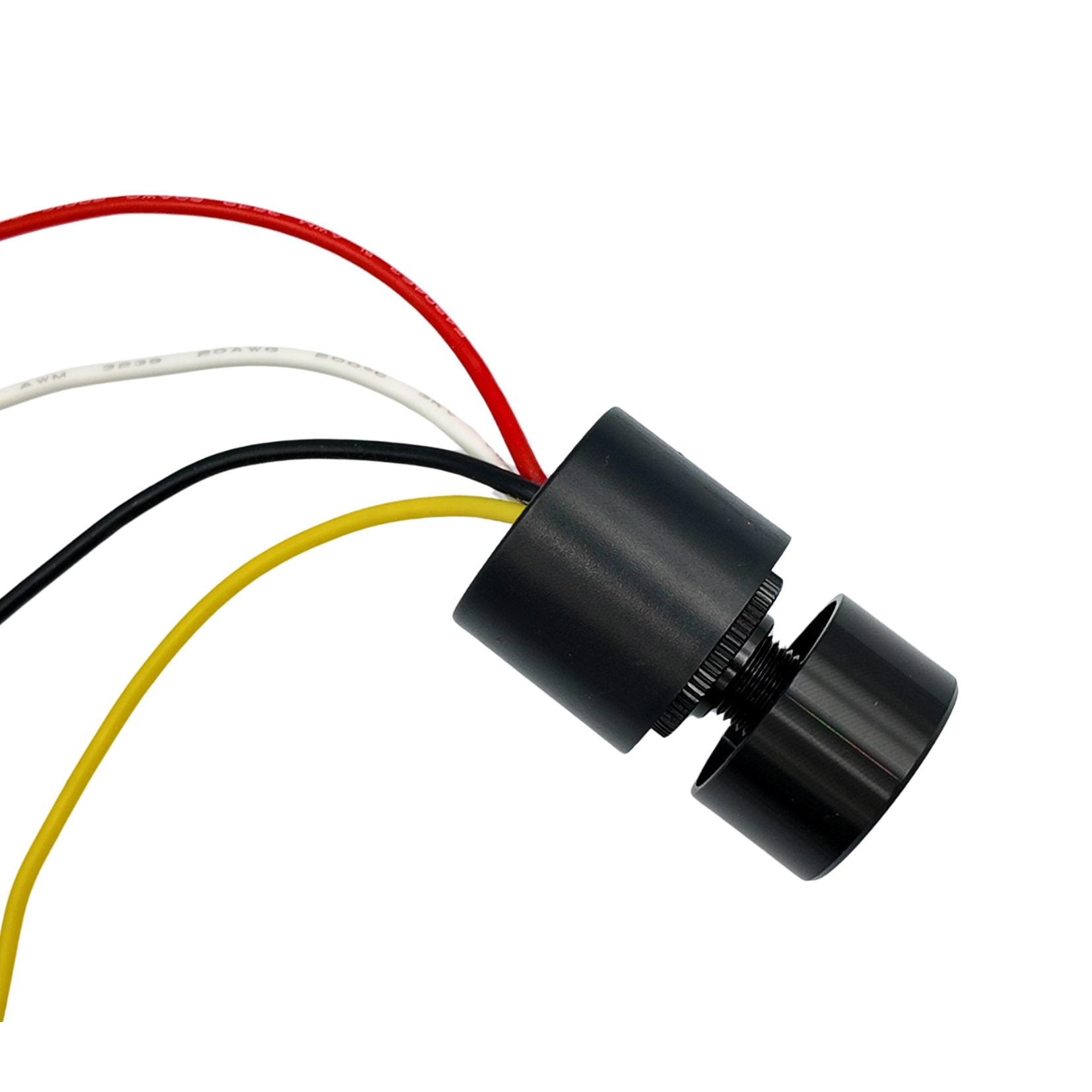

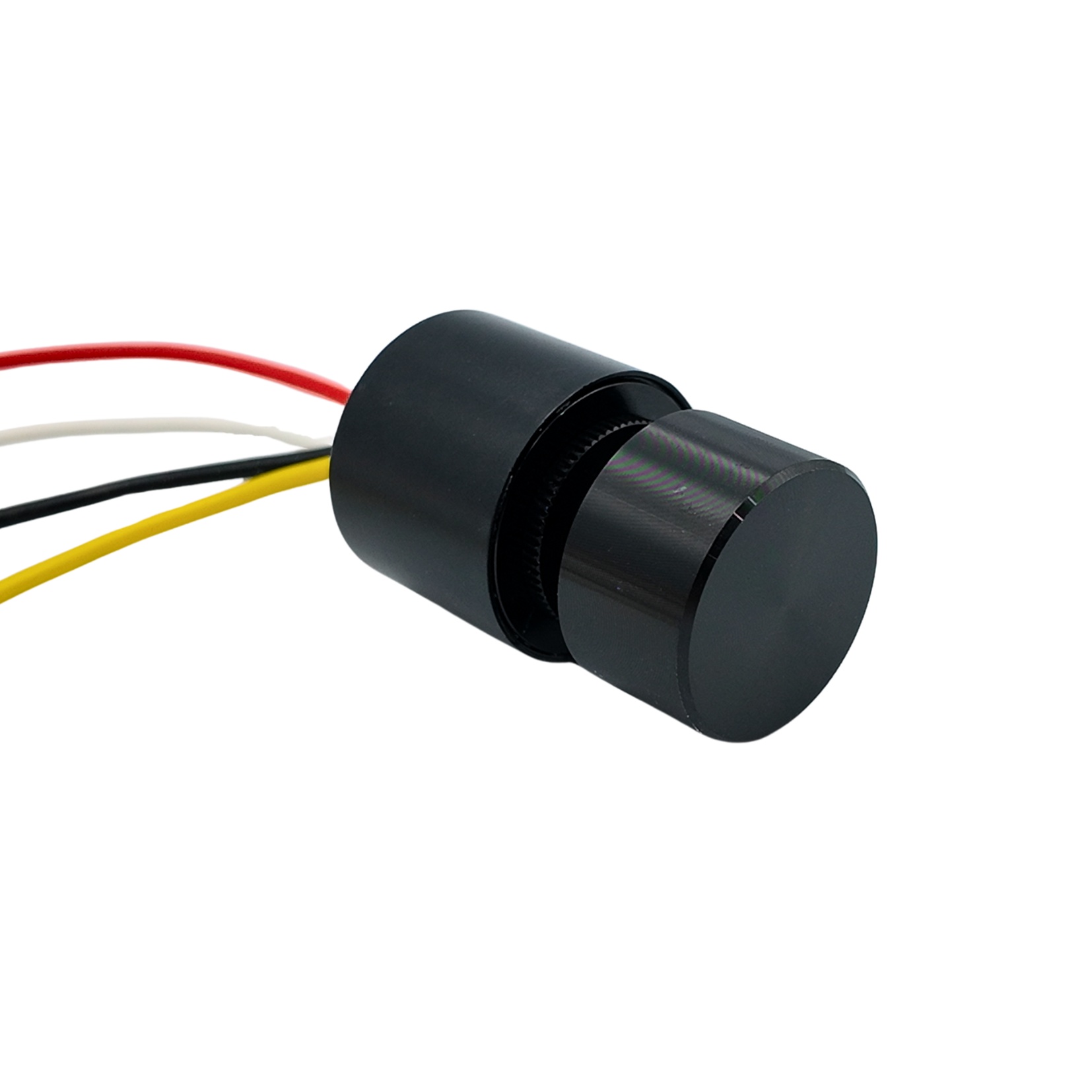

Dual Colour Rotary Dimmer

Professional Lighting Control Solution

Take complete control of your dual colour lighting with the Element3 Dual Colour Rotary Dimmer, engineered for precision and versatility. This compact yet powerful controller combines intuitive operation with robust performance, making it the perfect solution for professional installations requiring seamless colour and brightness control.

Key Features

• Compact design – 25mm body diameter and 20mm body height for minimal space requirements
• IP65 protection – Suitable for both indoor and outdoor installations
• Load capacity – 3A/channel (per colour) @ 12VDC OR 3A/channel (per colour) @ 24VDC (Output load capacity can be expanded using our 15A repeater for larger installations)
• PWM output technology – Ensures flicker-free performance across all brightness levels
• Memory function – Remembers last colour and dimmer setting
• Pre-wired convenience – 285mm attached cables for easy connections
• Professional grade – Brushed anodised black aluminium knob for durability

Easy ‘Rotate and Press’ Operation

• Push knob once to turn on/off
• Push knob twice to change modes – dimmer or colour change
• Once on desired mode, rotate the knob to adjust dimmer (5% – 100%) or change the colour

Simple Mounting Process

1. Pull the pressure-fitted knob off the shaft
2. Loosen the washer/nut
3. Drill a 10mm hole in the panel
4. Reattach the washer/nut and knob

Note: The dimmer without a repeater can run up to 2m of our Dual Colour LED strip. Check out our kits to run more than 2m off one dimmer.
